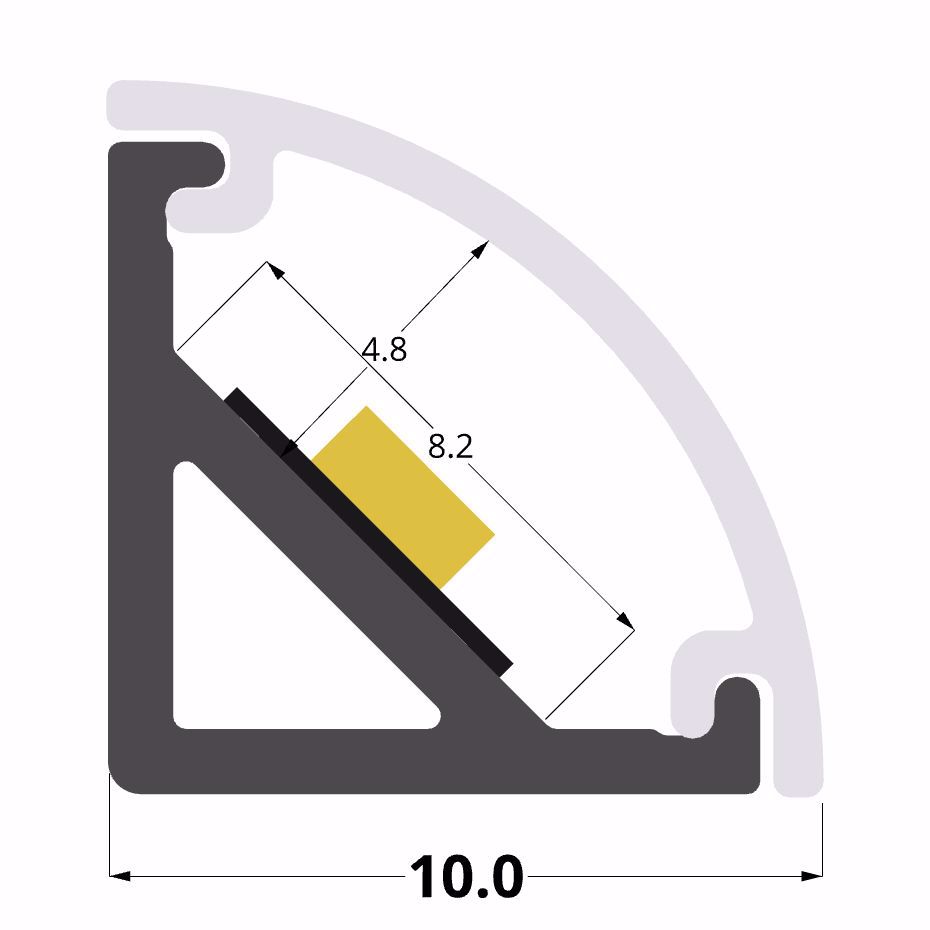

10mm corner aluminium profile.


ATTENTION: led strips, end caps, mounting clips and accessories are not included in the price. The length of the profiles and diffusers has a tolerance of +/- 2 mm.


Led strips profile

END CAPS AND CLIPS AVAILABLE SOON.


Available Colors


Silver finish profile (LLP-AN06-20-SX)


Photometric test


Photometric test Led strips profile
Transparent diffuser: -4%
Photometric test Led strips profile
Opal diffuser: -14%
Photometric test Led strips profile
Satin diffuser: -19%

Installation


Installation led strips profile




Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.

Picture of 10mm corner aluminium profile, 2 meters
10mm corner aluminium profile, 2 meters
SKU: LLP-AN06-20-S2
*
Picture of 10mm corner aluminium profile, 3 meters
10mm corner aluminium profile, 3 meters
SKU: LLP-AN06-20-S3
*
Products specifications
LED Profiles
Width x Height16 x 16 mm
Suitable PCBUp to 10 mm
Diffusers availableTransparent, opal, frosted
MaterialAluminium
Length available2 and 3 meters
