Corner aluminium profile 18x18mm

VIEW AVAILABLE VERSIONS



LUX CALCULATION PROFILES RANGE CATALOGUE CONTACT US

Download the DatasheetPhotometric Test


Designed in Italy

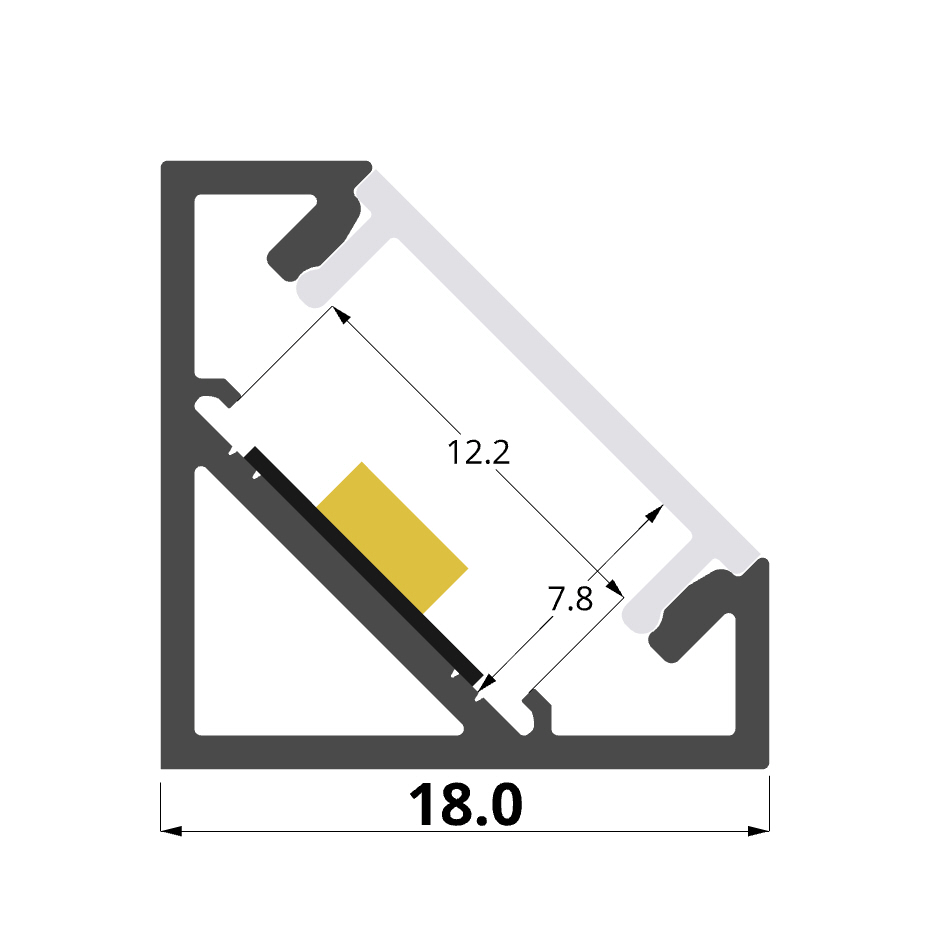

Corner aluminium profile 18x18mm.

ATTENTION: led strips, end caps, mounting clips and accessories are not included in the price. The length of the profiles and diffusers has a tolerance of +/- 2 mm.


Led strips alluminium profile LLP-AN07-03


Available Colors


Silver finish profile (LLP-AN07-03-SX) Black finish profile (LLP-AN07-03-BX)


Photometric test


Photometric test Led strips alluminium profile LLP-AN07-03
Transparent diffuser: -23%

Photometric test Led strips alluminium profile LLP-AN07-03
Semiopal diffuser: -27%

Photometric test Led strips alluminium profile LLP-AN07-03
Opal diffuser: -38%
Satin diffuser: -45%
Photometric test Led strips alluminium profile LLP-AN07-03
47° lens diffuser: -24%

Installation

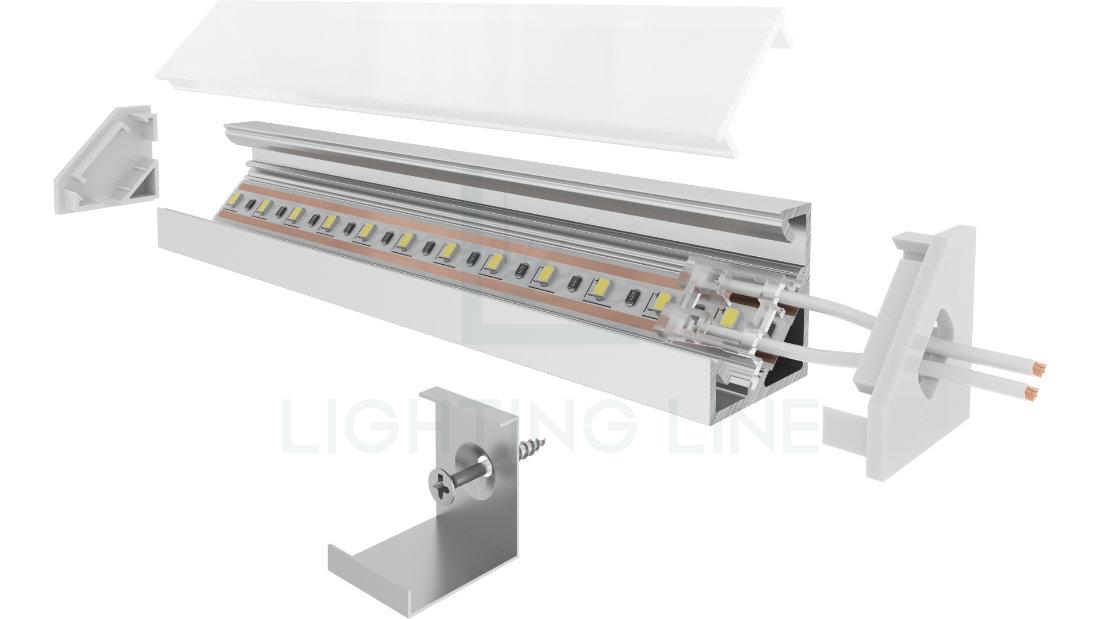

Installation led strips alluminium profile LLP-AN07-03



Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.

Picture of Corner aluminium profile 18x18mm, 2 meters
Corner aluminium profile 18x18mm, 2 meters
SKU: LLP-AN07-03-S2
*
Picture of Corner aluminium profile 18x18mm, 3 meters
Corner aluminium profile 18x18mm, 3 meters
SKU: LLP-AN07-03-S3
*
Picture of Corner aluminium white painted profile 18x18mm, 2 meters
Corner aluminium white painted profile 18x18mm, 2 meters
SKU: LLP-AN07-03-W2
*
Picture of Corner aluminium white painted profile 18x18mm, 3 meters
Corner aluminium white painted profile 18x18mm, 3 meters
SKU: LLP-AN07-03-W3
*
Products specifications
LED Profiles
Width x Height19 x 19 mm
Length available2 and 3 meters
Suitable PCBUp to 12 mm
Diffusers availableTransparent, opal, semiopal, frosted
MaterialAluminium
Related products
Picture of Diffuser for profiles with code LLP-XXXX-03-XX
LLD-03

Diffuser for profiles with code LLP-XXXX-03-XX
