Recessed 23x15mm aluminium profile

VIEW AVAILABLE VERSIONS



Download the DatasheetPhotometric TestDownload BIM file for Revit

Designed in Italy

PROFILES RANGE CATALOGUE CONTACT US

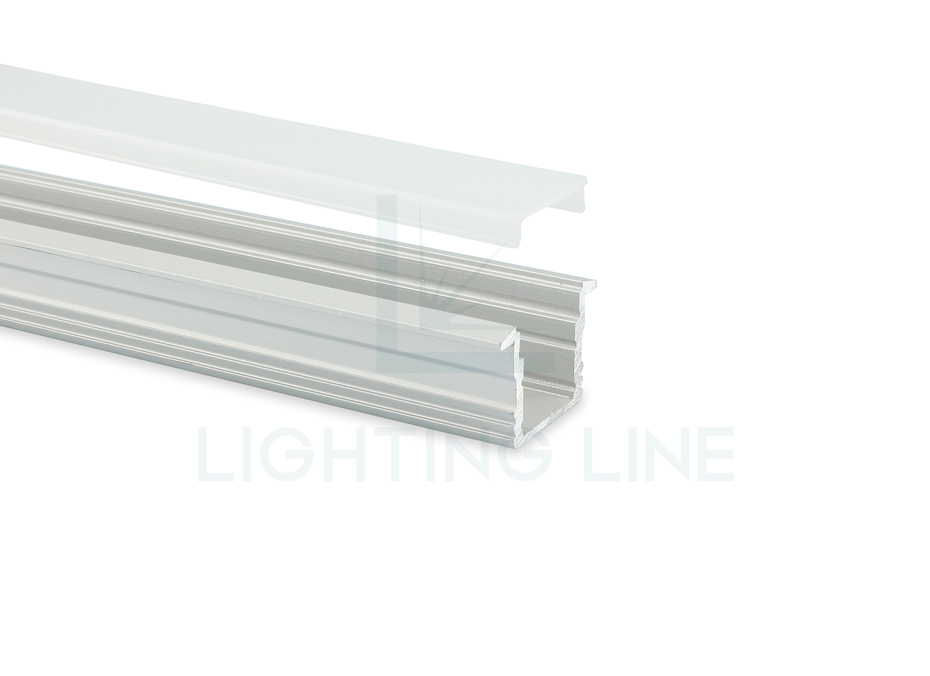

Recessed 23x15mm aluminium profile.

ATTENTION: led strips, end caps, mounting clips and accessories are not included in the price. The length of the profiles and diffusers has a tolerance of +/- 2 mm.


Led strips alluminium profile LLP-RE02-03


Available Colors


%DET%


Photometric test


Photometric test Led strips alluminium profile LLP-RE02-03
Transparent diffuser: -34%

Photometric test Led strips alluminium profile LLP-RE02-03
Semiopal diffuser: -38%

Photometric test Led strips alluminium profile LLP-RE02-03
Opal diffuser: -49%
Satin diffuser: -55%
Photometric test Led strips alluminium profile LLP-RE02-03
18° lens diffuser: -34%

Photometric test Led strips alluminium profile LLP-RE02-03
Black diffuser: -89%

Installation


Installation led strips alluminium profile LLP-RE02-03

Picture of Recessed 23x15mm aluminium profile, 2 meters
Recessed 23x15mm aluminium profile, 2 meters
Photometric TestDownload BIM file for Revit
SKU: LLP-RE02-03-S2
*
Picture of Recessed 23x15mm aluminium profile, 3 meters
Recessed 23x15mm aluminium profile, 3 meters
Photometric TestDownload BIM file for Revit
SKU: LLP-RE02-03-S3
*
Picture of Recessed 23x15mm white painted aluminium profile, 2 meters
Recessed 23x15mm white painted aluminium profile, 2 meters
Photometric TestDownload BIM file for Revit
SKU: LLP-RE02-03-W2
*
Picture of Recessed 23x15mm white painted aluminium profile, 3 meters
Recessed 23x15mm white painted aluminium profile, 3 meters
Photometric TestDownload BIM file for Revit
SKU: LLP-RE02-03-W3
*
Picture of Recessed 23x15mm black oxidized aluminium profile, 2 meters
Recessed 23x15mm black oxidized aluminium profile, 2 meters
Photometric TestDownload BIM file for Revit
SKU: LLP-RE02-03-B2
*
Picture of Recessed 23x15mm black oxidized aluminium profile, 3 meters
Recessed 23x15mm black oxidized aluminium profile, 3 meters
Photometric TestDownload BIM file for Revit
SKU: LLP-RE02-03-B3
*
Products specifications
Width x Height23,3 x 15,3 mm
Length available3 meters
Suitable PCBUp to 12 mm
Diffusers availableTransparent, opal, semiopal, frosted
MaterialAluminum
