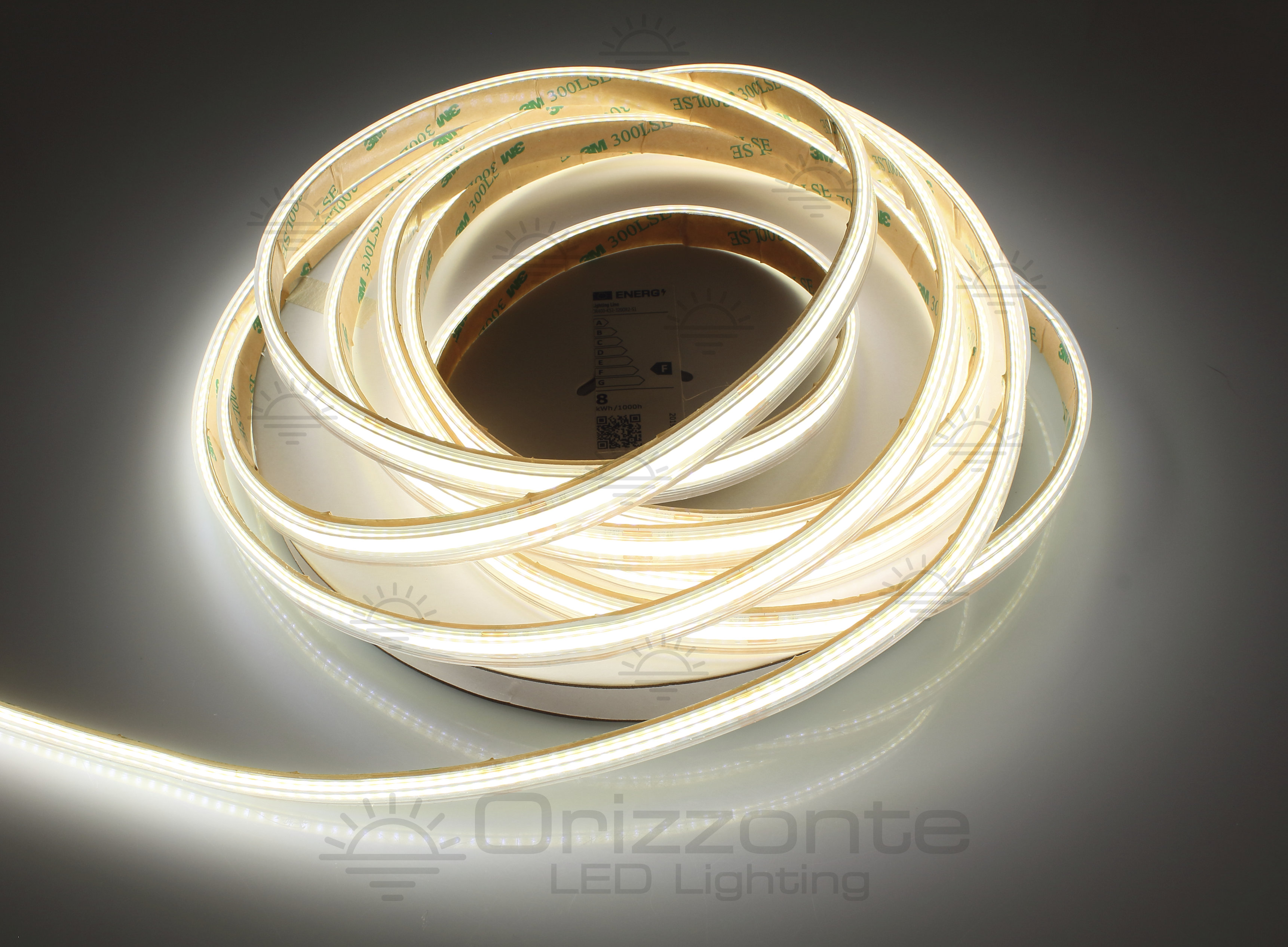

COB LED 5m strip white 4000K CRI Ra>90 320led/m 24V 9,6W/m, IP64 extruded silicone tube with full edges (empty inside)

SKU: OR400-K52-320OR2-S1
LED strip color rendering index (C.R.I.): CRI Ra>90 COB LED strip LED strip per meter power consumption: 9,6 W/m LED strip IP rating: IP64 corner, extruded with full edges (empty inside) LED strip voltage: 24V LED strip cutting point every 5cm COB LED strips are LED strips that allow to create a dots free light effect and offer a wider beam angle of 180° Energy class F

Double-sided adhesive tape datasheet available for download

Flexible LED strip with double sided tape for a fast installation even on curved surfaces. Thanks to the coating that covers the LEDs, the COB strip allows to create a dot free light with a wide beam angle.

  • Lumens: 800 lm/m
  • Efficiency: 90 lm/W
  • Strip LED colour temperature: 4000K
  • Power consumption 9,6 W/m (48W), 24V (+0%, -15%)
  • Dimmable LED strip with 1600 led (320 led/m)
  • Led strip cuttable every 16 chips (every 5cm). Length 5 m, width 10 mm, height 5 mm
  • PCB colour: White
  • Double sided adhesive tape type: 3M 9495LE
  • 10 cm power input cables on both sides of the strip
  • Working temperature: -10°C ~ +45°C

%SUBT_IMGALT_SCHEMA%

Led strip COB 24V IP64 4000K 320led/m K52-400-320OR2-S1 Led strip COB 24V IP64 4000K 320led/m K52-400-320OR2-S1



LED STRIP TURNED OFF'S ZOOM LED STRIP TURNED ON'S ZOOM

Led strip COB 24V IP64 4000K 320led/m K52-400-320OR2-S1


Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.



Led strip COB 24V IP64 4000K 320led/m K52-400-320OR2-S1

The image is just an example and has the aim to show cables of LED strips OR400-K52-320OR2-S1.


Products specifications
LED Strips
Water protectionIP64 Silicone
Voltage24V
Power consumption per meter9.6 W
Leds per meter320
Led modelCOB
Light colour3000K
LED strip width10 mm
Cut point5 cm
Length5 m
Colour renderingCRI Ra>93
