Aluminium handrail

VIEW AVAILABLE VERSIONS



Download the DatasheetPhotometric TestDownload BIM file for Revit

Designed in Italy

PROFILES RANGE CATALOGUE CONTACT US

Aluminium handrail.

ATTENTION: led strips, end caps, mounting clips and accessories are not included in the price. The length of the profiles and diffusers has a tolerance of +/- 2 mm.


Led strips alluminium profile LLP-HR01-0203


Available Colors



Photometric test


Photometric test Led strips alluminium profile LLP-HR01-0203
Opal diffuser pos. 5: -61%
Photometric test Led strips alluminium profile LLP-HR01-0203
Transparent diffuser pos. 4: -17%
Photometric test Led strips alluminium profile LLP-HR01-0203
Transparent lens 60° diffuser pos. 4: -15%
Photometric test Led strips alluminium profile LLP-HR01-0203
Transparent diffuser pos. 1: -25%
Photometric test Led strips alluminium profile LLP-HR01-0203
Transparent diffuser pos. 3: -32%

Installation


Installation led strips alluminium profile LLP-HR01-0203

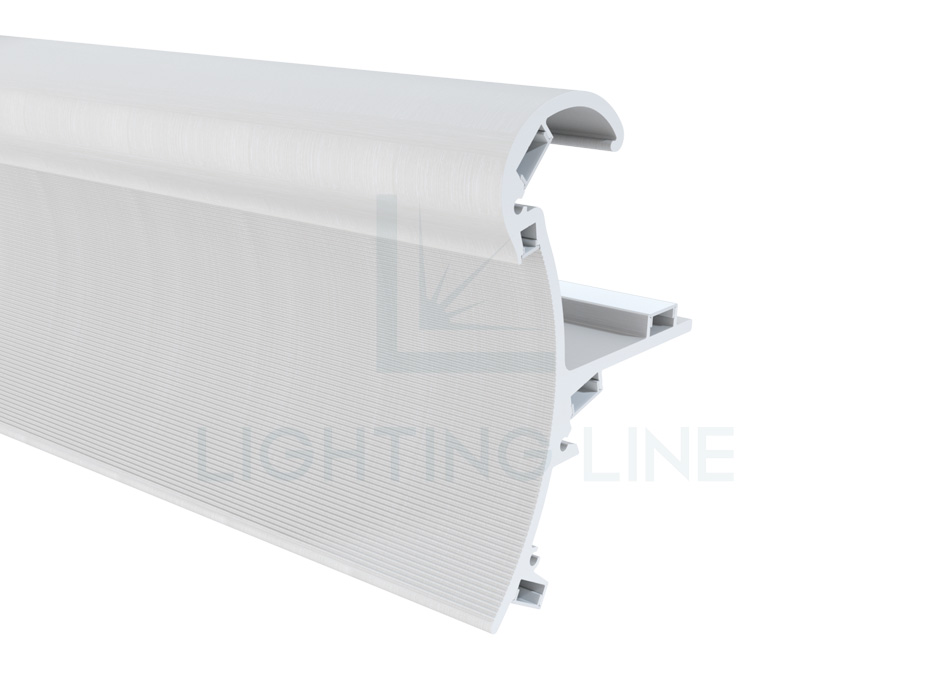

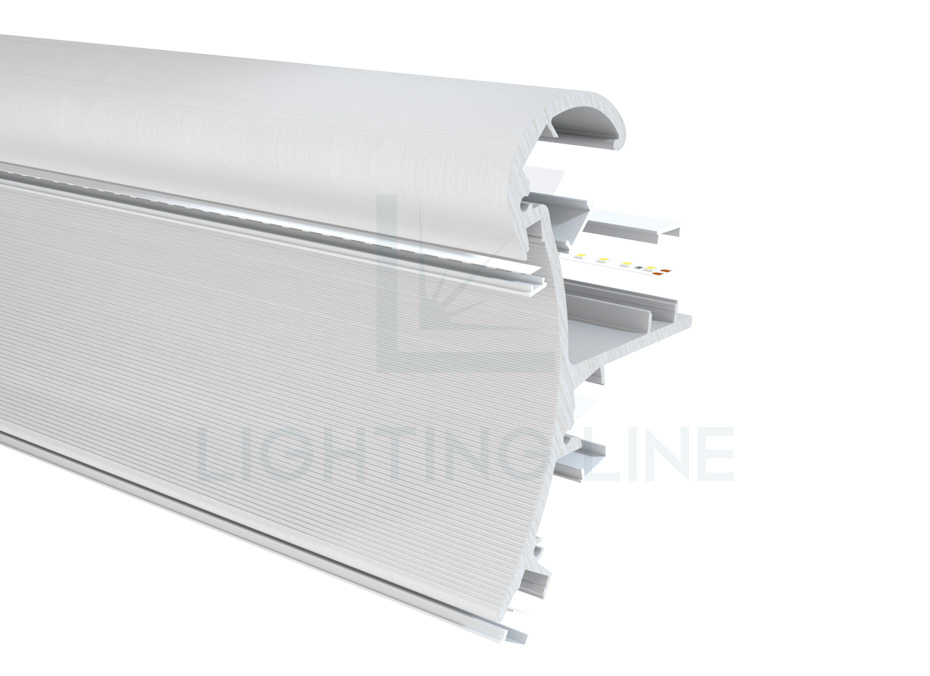

Picture of Aluminium handrail, 6 meters
Aluminium handrail, 6 meters
Download the DatasheetPhotometric TestDownload BIM file for Revit
SKU: LLP-HR01-0203-S6
Picture of White painted aluminium handrail, 6 meters
White painted aluminium handrail, 6 meters
Photometric TestDownload BIM file for Revit
SKU: LLP-HR01-0203-W6
Products specifications
Width x Height107,6 x 144 mm
Length available6 meters
Suitable PCBUp to 12 mm
Diffusers availableOpal, frosted
MaterialAluminum
