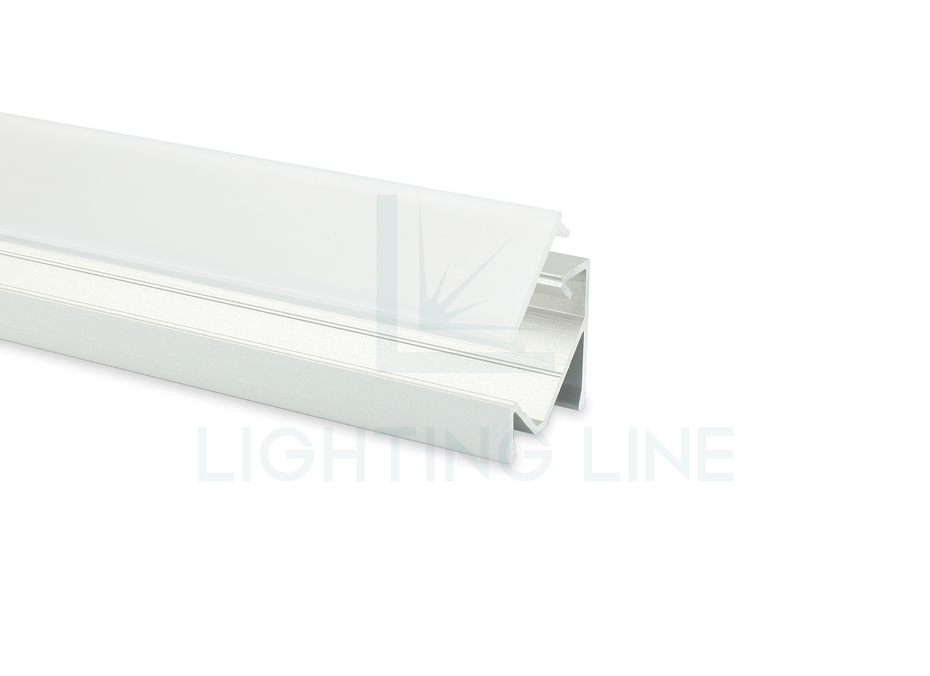

Corner, empty aluminium profile 19x19mm.

ATTENTION: led strips, end caps, mounting clips and accessories are not included in the price. The length of the profiles and diffusers has a tolerance of +/- 2 mm.


Led strips alluminium profile LLP-AN01-03


Available Colors


Silver finish profile (LLP-AN01-03-SX) Black finish profile (LLP-AN01-03-BX)


Photometric test


Photometric test Led strips alluminium profile LLP-AN01-03
Transparent diffuser: -25%

Photometric test Led strips alluminium profile LLP-AN01-03
Semiopal diffuser: -29%

Photometric test Led strips alluminium profile LLP-AN01-03
Opal diffuser: -41%
Satin diffuser: -47%
Photometric test Led strips alluminium profile LLP-AN01-03
40° lens diffuser: -25%

Installation


Installation led strips alluminium profile LLP-AN01-03



Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.

Picture of Corner, empty aluminium profile 19x19mm, 2 meters
Corner, empty aluminium profile 19x19mm, 2 meters
SKU: LLP-AN01-03-S2
*
Picture of Corner, empty aluminium white painted profile 19x19mm, 2 meters
Corner, empty aluminium white painted profile 19x19mm, 2 meters
SKU: LLP-AN01-03-W2
*
Picture of Corner, empty aluminium profile 19x19mm, 3 meters
Corner, empty aluminium profile 19x19mm, 3 meters
SKU: LLP-AN01-03-S3
*
Picture of Corner, empty aluminium white painted profile 19x19mm, 3 meters
Corner, empty aluminium white painted profile 19x19mm, 3 meters
SKU: LLP-AN01-03-W3
*
Products specifications
LED Profiles
Width x Height19 x 19 mm
Length available2 and 3 meters
Suitable PCBUp to 12 mm
Diffusers availableTransparent, opal, semiopal, frosted
MaterialAluminium
