Led strip was built with Honglitronic leds, version HL-AM-2835H421W-S1-08-HR3-3SDCM. The 3step LED allows to install or replace LED strips having the same colour temperature without seeing different shades of colour even for different product batches. For further information please consult LED datasheet.
The led strip F52-40s-096822Z is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.
- 2835 LED
- Lumens: 1100 lm/m
- Efficiency: 120 lm/W
- Strip LED colour temperature: 4000K 3step
- Power consumption 10 W/m (50W), 24V (+0%, -15%)
- Dimmable LED strip with 480 led (96 led/m)

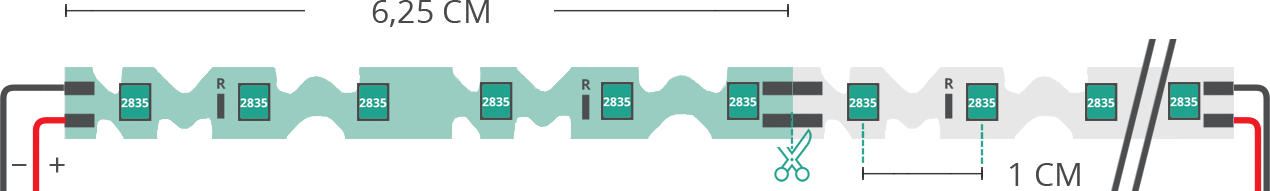

- Led strip cuttable every 6 chips (every 6,25cm). Length 5 m, width 6 mm, height 1,5 mm
- PCB colour: White
- Double sided adhesive tape type: 3M 9495LE
- 10 cm power input cables on both sides of the strip
- Working temperature: -10°C ~ +50°C
- IEC/TR 62778:2014 photobiological risk certificate: risk Group 1 when used as light source.

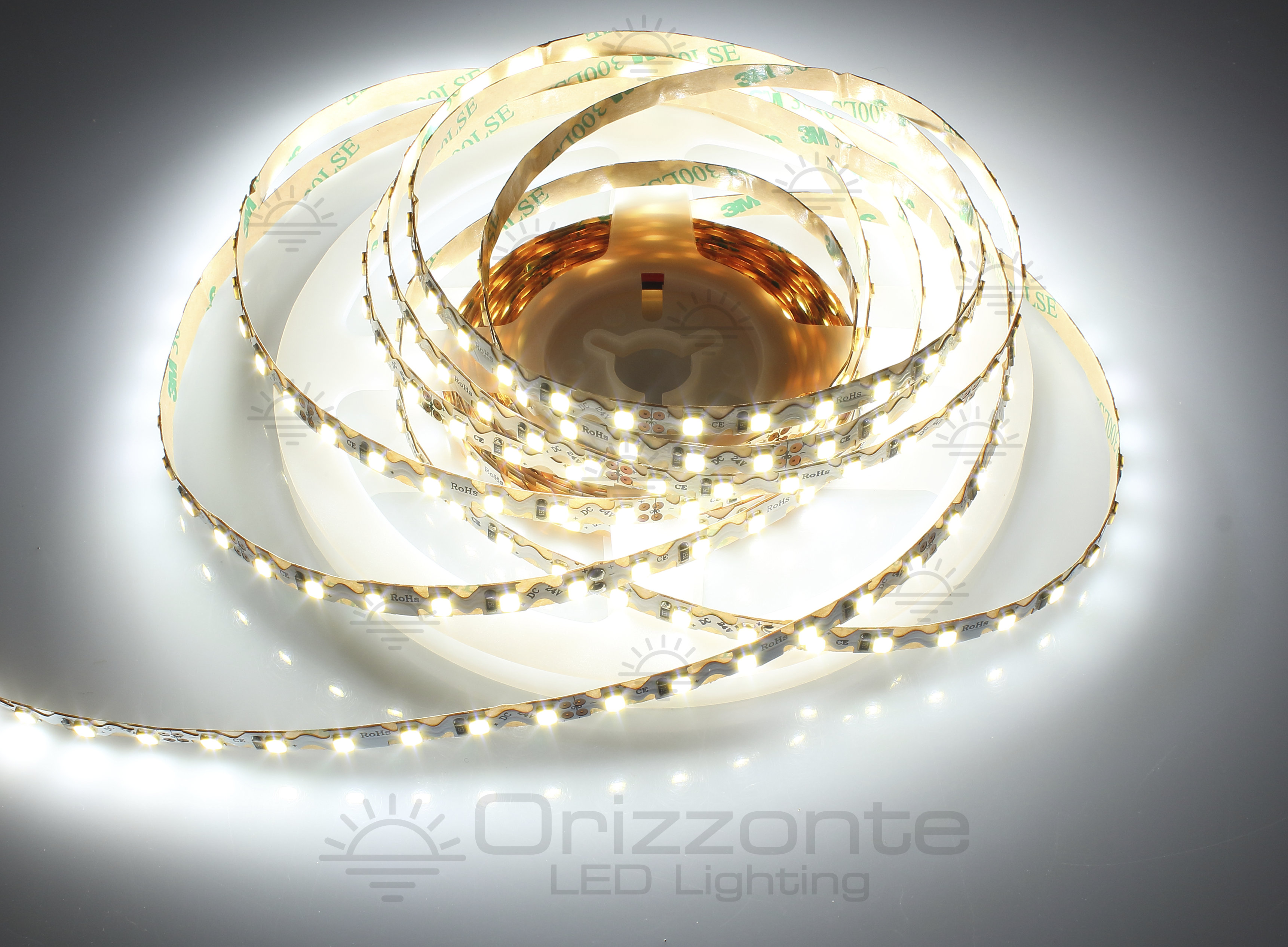

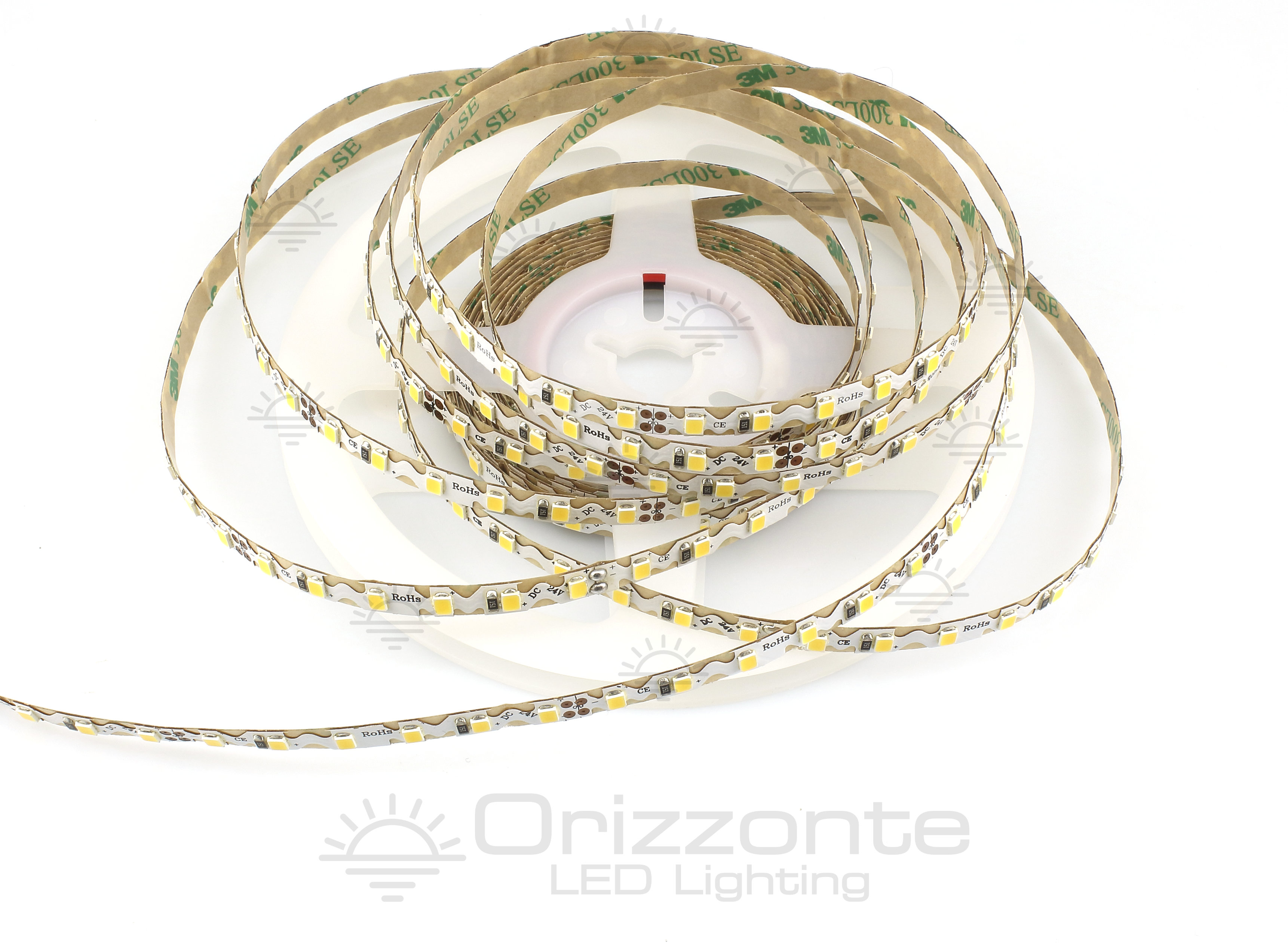

LED STRIP TURNED OFF'S ZOOM LED STRIP TURNED ON'S ZOOM
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.

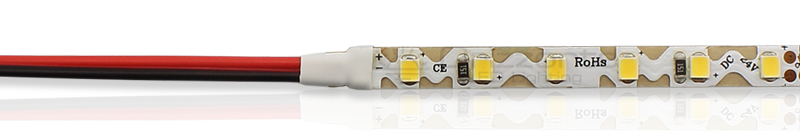

The image is just an example and has the aim to show cables of LED strips OR40s-F52-096822Z.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
