LED strip 5m white 4000K 3step 120leds/m 2835 24V 14,4W/m, IP65 extruded silicone tube with full edges (empty inside)
SKU: OR40s-K52-1208F2/14.4
CATALOGUE SMD
OR40s-K52-1208F2/14.4 is a flexible waterproof led strip with 3M self-adhesive on its back side for quick installation even on curve surfaces.
- 2835 LED
- Lumens: 710 lm/m
- Efficiency: 110 lm/W
- Strip LED colour temperature: 4000K 3step
- Led colour temperature: 4000K 3step
- Power consumption 14,4 W/m (72W), 24V (+0%, -15%)
- Dimmable LED strip with 600 led (120 led/m)
- Led strip cuttable every 6 leds (every 5cm). Length 5000 m, width 12 mm, height 4 mm
- Water protection: IP65
- PCB colour: White
- Double sided adhesive tape type: 3M 9495LE
- 10 cm power input cables on both sides of the strip
- Working temperature: -10°C ~ +45°C
For a perfect adhesion of the double-sided tape the temperature both of the LED strip and the surface where it is installed should be between 21 and 38°C. The LED strip will be totally fixed after 72 hours approximately. The double-sided adhesive does not guarantee a seal on painted surfaces.
The energetic class refers to the light source installed inside. The luminous flux is lower and depends on the kind of IP protection.

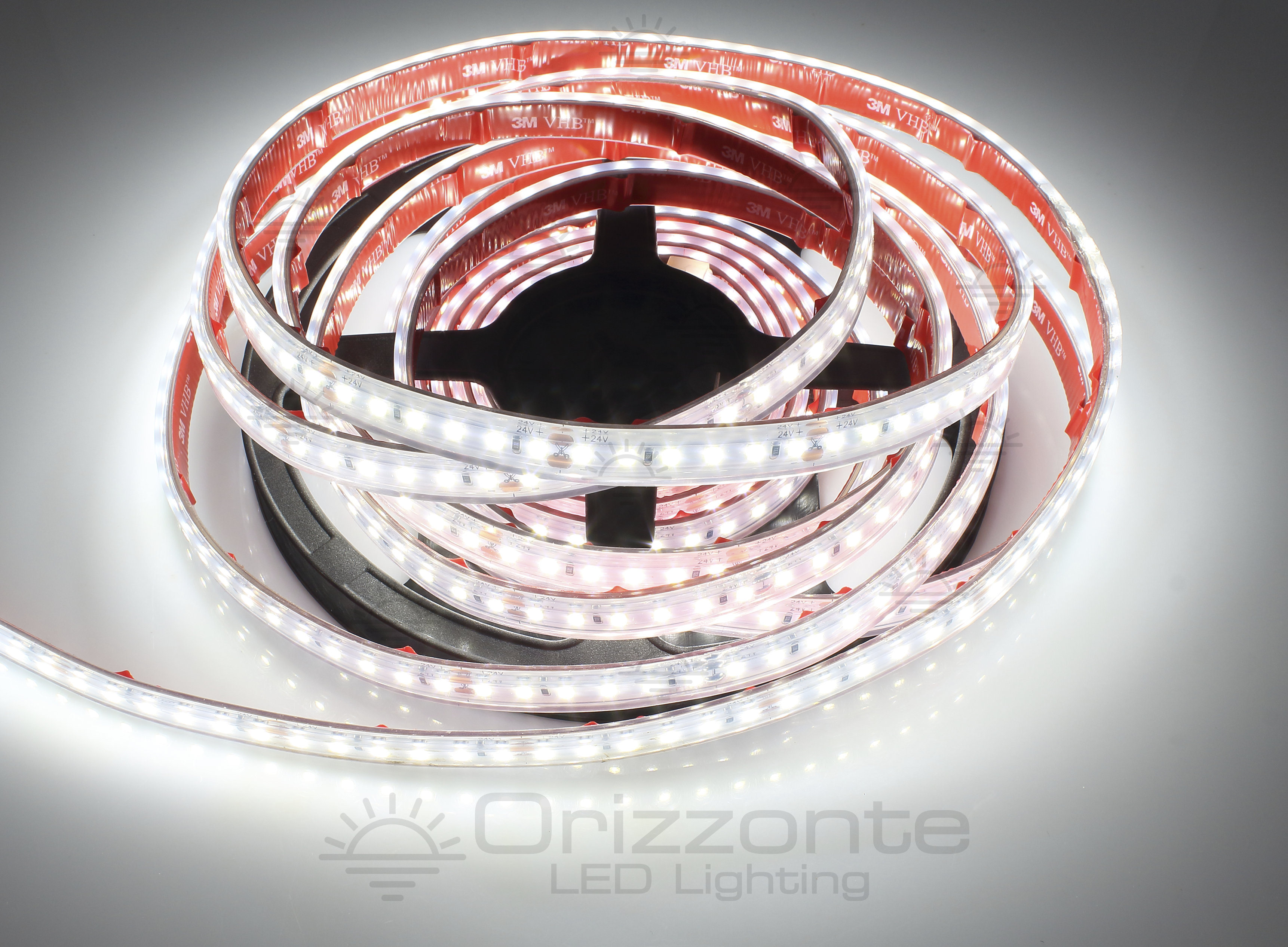

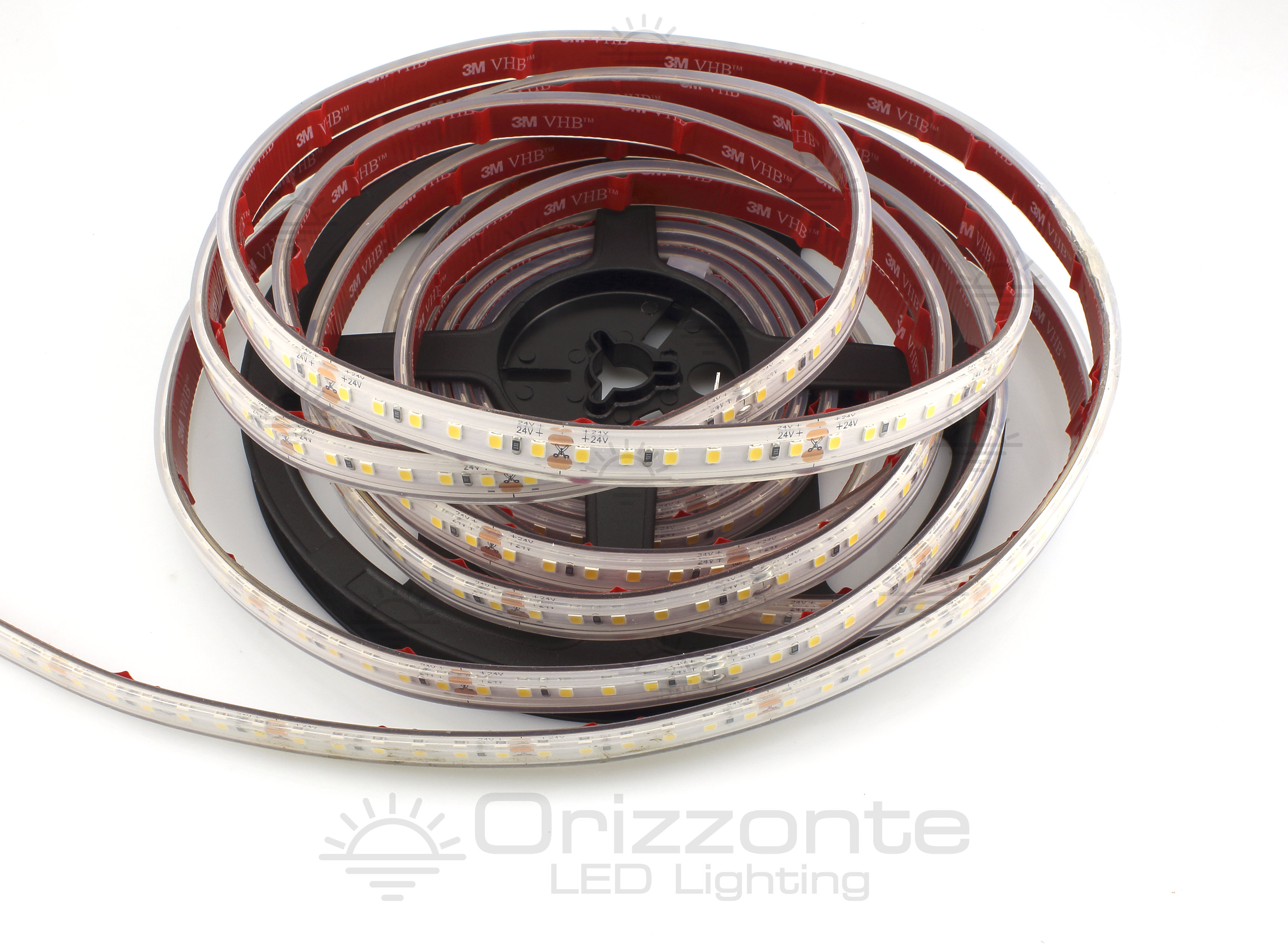

LED STRIP TURNED OFF'S ZOOM LED STRIP TURNED ON'S ZOOM
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.

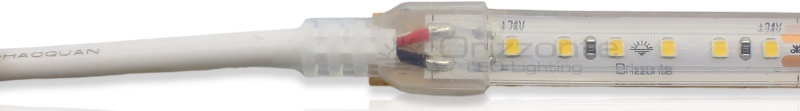

The image is just an example and has the aim to show cables of LED strips OR40s-K52-1208F2/14.4.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
