COB LED strip COB 5m CCT 2700-6500K CRI Ra>90 608led/m 24V 7,2W/m 10mm PCB

SKU: ORCCT-F52-608OR2-W10
LED strip color rendering index (C.R.I.): CRI Ra>90 COB LED strip LED strip per meter power consumption: 7,2 W/m LED strip IP rating: IP20 LED strip voltage: 24V LED strip cutting point every 2,65cm COB LED strips are LED strips that allow to create a dots free light effect and offer a wider beam angle of 180° Energy class F

Double-sided adhesive tape datasheet available for download Product Test Report available to download


Flexible LED strip with double sided tape for a fast installation even on curved surfaces. Thanks to the coating that covers the LEDs, the COB strip allows to create a dot free light with a wide beam angle.

  • Lumens warm white 2700K: 525 lm/m
  • Lumens cool white 6500K: 680 lm/m
  • Efficiency warm white 2700K: 80 lm/W
  • Efficiency cool white 6500K: 105 lm/W
  • Strip LED colour temperature: 2700-6500K
  • Power consumption 7,2 W/m (36W). Real power without CCT controller 14,4 W/m (72W). Input voltage 24 volt (+0%, -15%),
  • Dimmable LED strip with 3040 chips (304+304 chips/m)

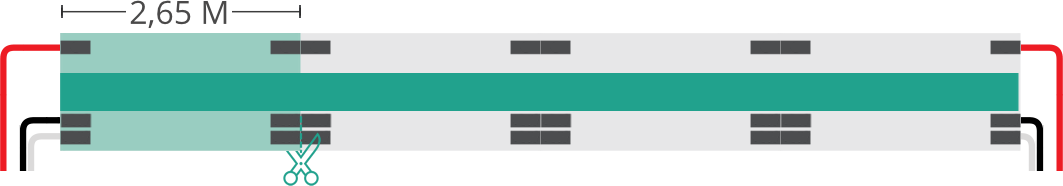

  • Led strip cuttable every 16 chips (every 2,65cm). Length 5 m, width 10 mm, height 2 mm
  • PCB colour: White
  • Double sided adhesive tape type: 3M 9495LE
  • 10 cm power input cables on both sides of the strip
  • Working temperature: -10°C ~ +45°C

%SUBT_IMGALT_SCHEMA%

Led strip COB 24V IP20 2700-6500K 304+304led/m F52-CCT-608OR2-W10 Led strip COB 24V IP20 2700-6500K 304+304led/m F52-CCT-608OR2-W10

Led strip COB 24V IP20 2700-6500K 304+304led/m F52-CCT-608OR2-W10


Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.



Led strip COB 24V IP20 2700-6500K 304+304led/m F52-CCT-608OR2-W10

The image is just an example and has the aim to show cables of LED strips ORCCT-F52-608OR2-W10.




Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.

Products specifications
LED Strips
Water protectionIP20 (no)
Voltage24V
Power consumption per meter6.6 W
Leds per meter608
Led modelCOB
Light colourCCT
LED strip width10 mm
Cut point2,65 cm
Length5 m
Colour renderingCRI Ra>90
