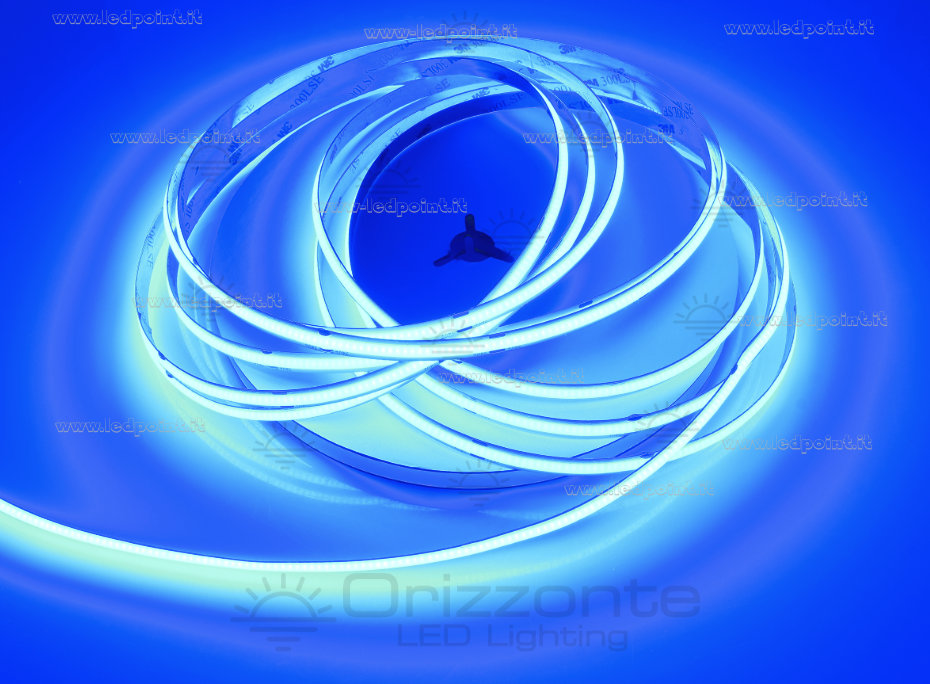

COB LED strip blue 10m 480leds/m 24V 12W/m

SKU: ORBLU-FA2-480OR2
COB LED strip LED strip per meter power consumption: 12 W/m LED strip IP rating: IP20 LED strip voltage: 24V LED strip cutting point every 5cm COB LED strips are LED strips that allow to create a dots free light effect and offer a wider beam angle of 180°

Double-sided adhesive tape datasheet available for download

Flexible LED strip with double sided tape for a fast installation even on curved surfaces. Thanks to the coating that covers the LEDs, the COB strip allows to create a dot free light with a wide beam angle.

  • Lumens: 1100 lm/m
  • Efficiency: 100 lm/W
  • Strip LED colour temperature: Blue
  • Power consumption 12 W/m (120W), 24V (+0%, -15%)
  • Dimmable LED strip with 4800 chips (480 chips/m)
  • Led strip cuttable every 24 chips (every 5cm). Length 10 m, width 8 mm, height 2 mm
  • PCB colour: White
  • Double sided adhesive tape type: 3M 9495LE
  • 10 cm power input cables on both sides of the strip
  • Working temperature: -10°C ~ +45°C

%SUBT_IMGALT_SCHEMA%

Led strip COB 24V IP20 %COLORE% 480led/m FA2-BLU-480OR2 Led strip COB 24V IP20 %COLORE% 480led/m FA2-BLU-480OR2



LED STRIP TURNED OFF'S ZOOM LED STRIP TURNED ON'S ZOOM

Led strip COB 24V IP20 %COLORE% 480led/m FA2-BLU-480OR2


Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.



Led strip COB 24V IP20 %COLORE% 480led/m FA2-BLU-480OR2

The image is just an example and has the aim to show cables of LED strips ORBLU-FA2-480OR2.




Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.

Products specifications
LED Strips
Water protectionIP20 (no)
Voltage24V
Power consumption per meter12 W
Leds per meter480
Led modelCOB
Light colourBlue
LED strip width8 mm
Cut point5 cm
Length10 m
