34x34mm aluminium profile for wall installation

VIEW AVAILABLE VERSIONS



LUX CALCULATION PROFILES RANGE CATALOGUE CONTACT US

Photometric Test


Designed in Italy

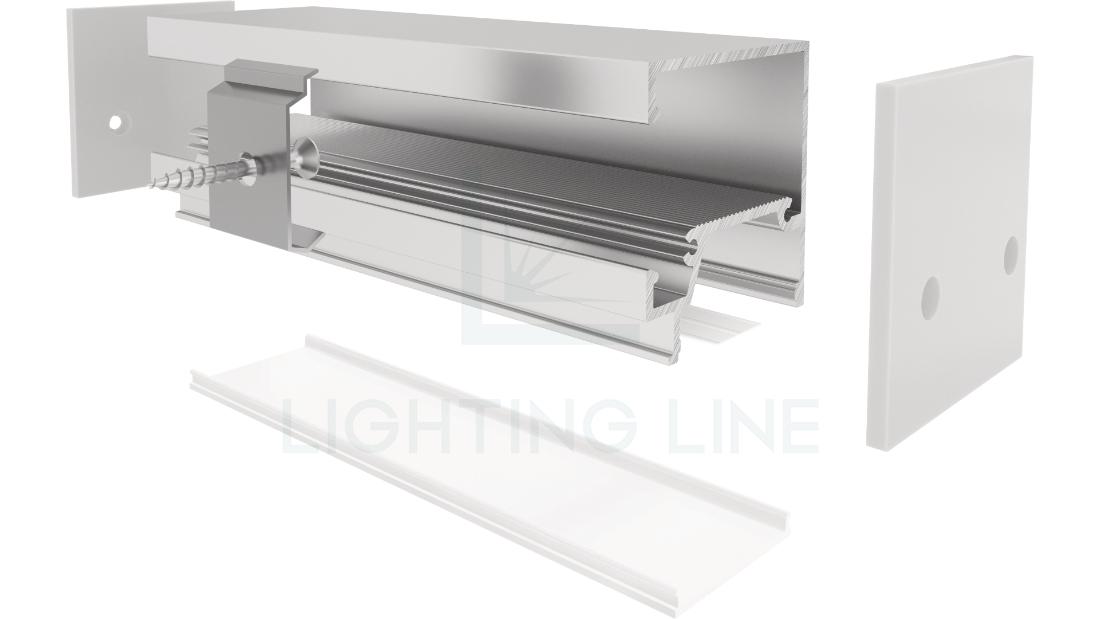

34x34mm aluminium profile for wall installation.

ATTENTION: led strips, end caps, mounting clips and accessories are not included in the price. The length of the profiles and diffusers has a tolerance of +/- 2 mm.


Led strips alluminium profile LLP-WL05-05


Available Colors


Silver finish profile (LLP-WL05-05-SX) Black finish profile (LLP-WL05-05-BX)


Photometric test


Photometric test Led strips alluminium profile LLP-WL05-05
Transparent diffuser: -21%
Photometric test Led strips alluminium profile LLP-WL05-05
Opal diffuser: -37%
Photometric test Led strips alluminium profile LLP-WL05-05
Satin diffuser: -38%

Installation


Installation led strips alluminium profile LLP-WL05-05



Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.

Picture of 70x31mm aluminium profile with dual light emission for wall mounting, 2 meters
70x31mm aluminium profile with dual light emission for wall mounting, 2 meters
SKU: LLP-WL05-05-S2
*
Picture of 70x31mm white painted aluminium profile with dual light emission for wall mounting, 2 meters
70x31mm white painted aluminium profile with dual light emission for wall mounting, 2 meters
SKU: LLP-WL05-05-W2
*
Products specifications
LED Profiles

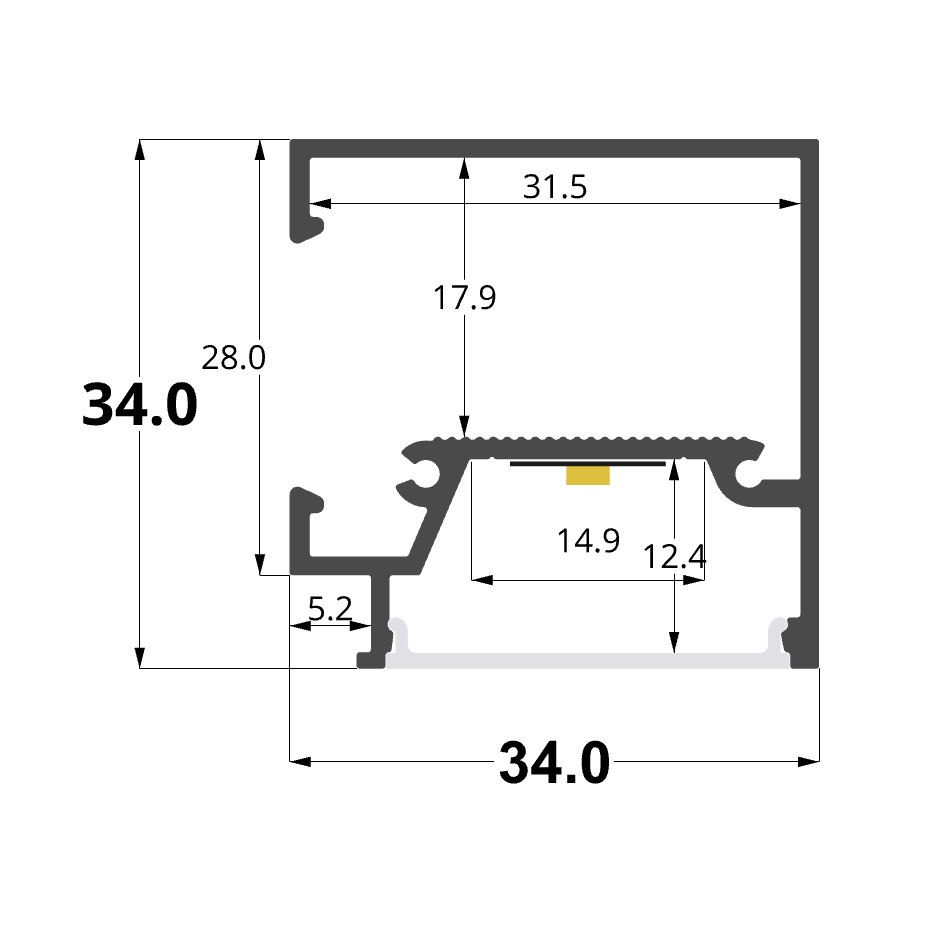

Width x Height34 x 34 mm
Length available2 meters
Suitable PCBUp to 12 mm
Diffusers availableTransparent, opal, frosted
MaterialAluminium
