17x7mm aluminium profile

LUX CALCULATION PROFILES RANGE CATALOGUE CONTACT US

Photometric Test


17x7mm aluminium profile. New model compatible with new quick connectors. See below among related products.


ATTENTION: led strips, end caps, mounting clips and accessories are not included in the price. The length of the profiles and diffusers has a tolerance of +/- 2 mm.


Led strips profile


Available Colors


Silver finish profile (LLP-SL17-03-SX) Black finish profile (LLP-SL17-03-BX) Black finish profile (LLP-SL17-03-BX)


Photometric test


Photometric test Led strips profile
Transparent diffuser: -2%

Photometric test Led strips profile
Semiopal diffuser: -9%

Photometric test Led strips profile
Opal diffuser: -22%
Satin diffuser: -24%
Photometric test Led strips profile
60° lens diffuser: -3%

Photometric test Led strips profile
Black diffuser: -86%

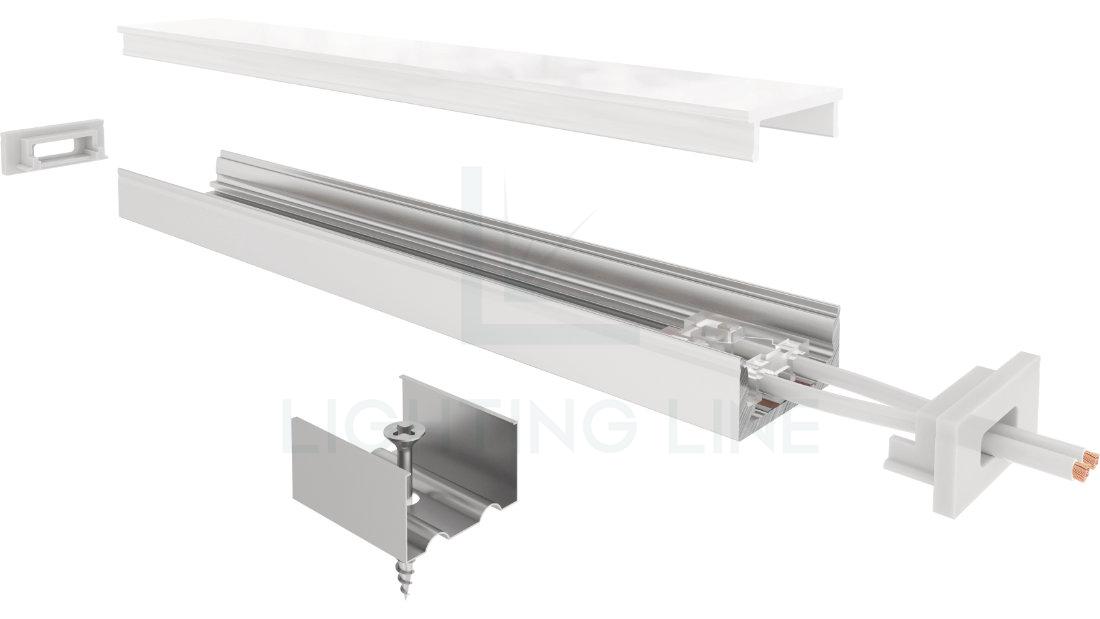

Installation


Installation led strips profile




Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.

Picture of 17x7mm aluminium profile, 2 meters
17x7mm aluminium profile, 2 meters
SKU: LLP-SL17-03-S2
*
Picture of 17x7mm aluminium profile, 3 meters
17x7mm aluminium profile, 3 meters
SKU: LLP-SL17-03-S3
*
Picture of 17x7mm white painted aluminium profile, 2 meters
17x7mm white painted aluminium profile, 2 meters
SKU: LLP-SL17-03-W2
*
Picture of 17x7mm white painted aluminium profile, 3 meters
17x7mm white painted aluminium profile, 3 meters
SKU: LLP-SL17-03-W3
*
Picture of 17x7mm black oxidized aluminium profile, 2 meters
17x7mm black oxidized aluminium profile, 2 meters
SKU: LLP-SL17-03-B2
*
Picture of 17x7mm black oxidized aluminium profile, 3 meters
17x7mm black oxidized aluminium profile, 3 meters
SKU: LLP-SL17-03-B3
*
Products specifications
LED Profiles

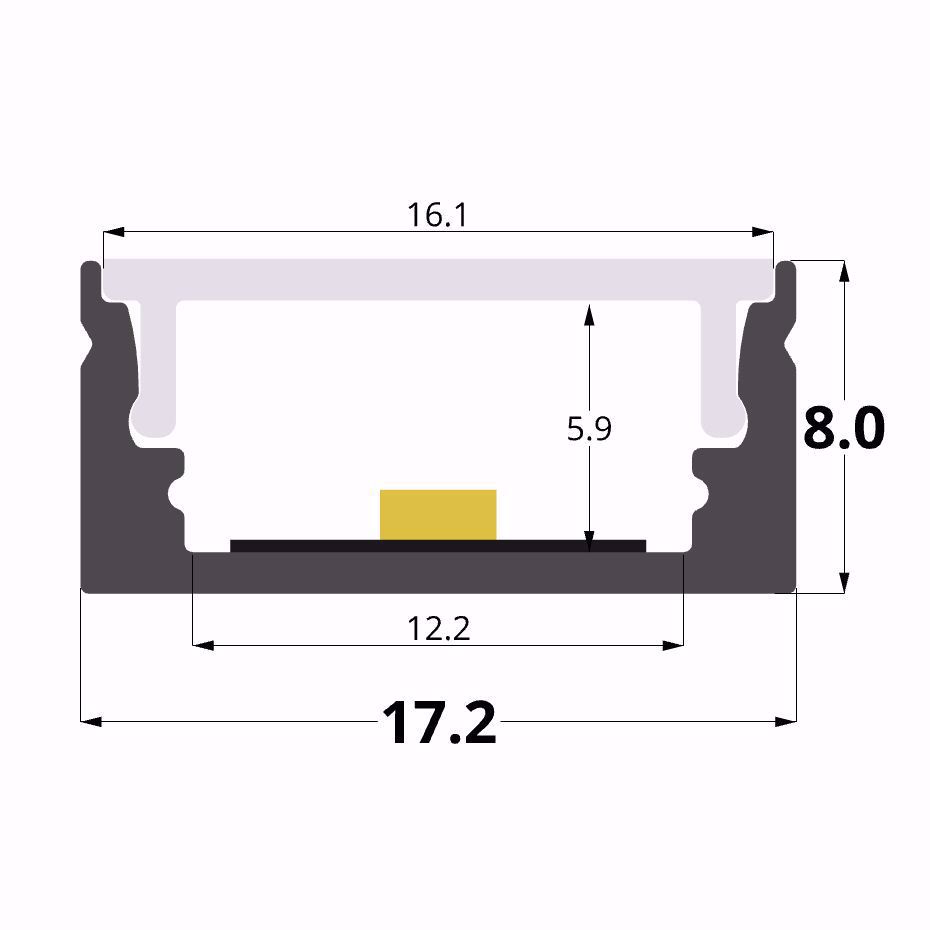

Width x Height17,2 x 7 mm
Length available2 and 3 meters
Suitable PCBUp to 12 mm
Diffusers availableTransparent, opal, semiopal, frosted
MaterialAluminium
